Post & Beam


Untitled Document

Building Systems

Post&Beam

D-Log

Phoenix Timber

Classic Timber

The Custom Home Guide

Purchase our "CUSTOM HOME GUIDE "

The "Custom Home Guide" contains an abundance of plans & images, and includes The DVD Companion. It offers unique designs to help you design the home of your dreams. The Custom Home Guide provokes thought and motivates the designer in all of us.

The PAN ABODE ADVANTAGE




Post and Beam Click for Post&Beam Overview

Post and Beam Isometric
Click for full size Mockup

"Post & Beam" Building System:

Think out of the traditional "Timber Frame" Box!

Fans of traditional Post and Beam, and Timber Frame construction will adore our Post and Beam Building System. Pan Abode's Post and Beam redefines the traditional Timber Frame by combining modern building techniques with time honored structural expression to create an elegant home that is not encumbered by the limitations of a traditional Timber Frame system. Pan Abode is the True Post and Beam building system known for efficient expansive open spaces and accentuation of structural detail, don't be fooled by imitations. A rich combination of Western Red Cedar ext. siding and trim, with full cathedral exposed Douglas Fir Beam ceilings and contemporary walls of glass that bring the outside in create an impressive open design.

The structural strength of our Post and Beam homes come from a sturdy frame of Douglas Fir glulam posts positioned under the overhead Douglas Fir glulam roof beams spanning the structure making large vaulted areas. Pan Abode's Post and Beam homes are designed with flexibility in mind. Unlike the rigid structural design of Timber Frame, the Post and Beam Building System is ideal for the manipulation of structure to arrive at a custom cedar home that is as unique as you and your needs!

The Posts and Beams are spaced 6' apart which maximizes the ratio of space to cost and provides optimum design spaces for rooms such as bathrooms and bedrooms as well as spaces for larger doors and windows. Connections are reinforced with bolted steel plates. This system allows for expansive living spaces and high ceilings not restricted by traditional framing and load bearing walls.

Exterior siding is 1x6 Western Red Cedar. Interior walls are finished with optional cedar paneling, pine paneling, drywall, or any custom material you select. The open beam ceilings can be of 2x6 Whitewood decking, 1x6 Whitewood paneling, or drywall.

The Pan Abode Post and Beam home. A combination of materials and spaces with unlimited possibilities and Timber Frame appeal.

Building plans, yours or ours?

Pan Abode Cedar Homes has been giving away award winning Custom Design with our building packages for years. Choose one of our plans and feel free to modify it, or bring in your own plan. With our "Free Custom Home Design Consultation", we will give expert design assistance and supply you with an accurate FREE pricing estimate. Work directly with a designer to get the home you want. Use the "Submit a Sketch" to initiate the process. "From Concept to Reality"

Top

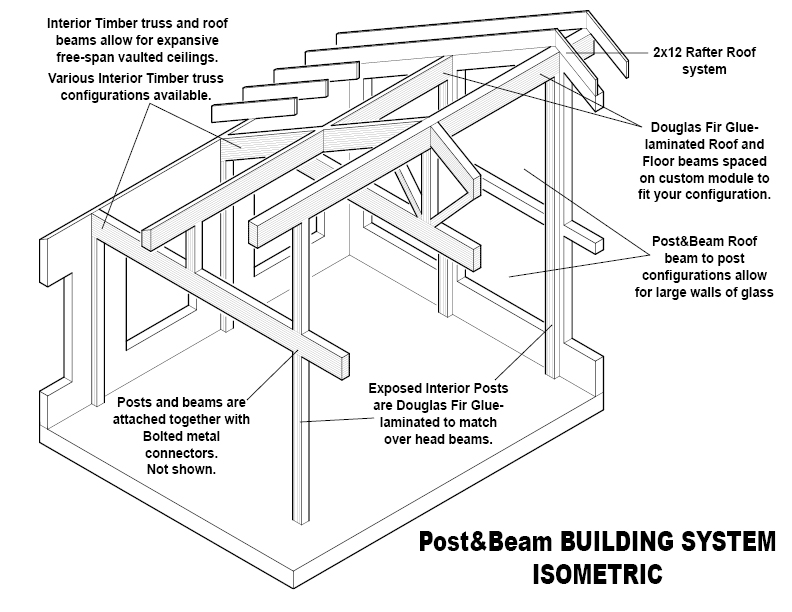

System Isometric

Post and Beam Isometric
Click for full-size version.

Top

Material Specifications (What's included)

Pan Abode sets a standard specification material list that corresponds with our published price list for our Complete "Dried-in" building shell packages. These specs can be modified to the desires of our customers and their needs. The following is an overview of "What is Included" with the Post&Beam Building System. Click below if a more detailed description is desired.

  • Floor System: Main floor includes solid sawn floor joists, underlayment grade subfloor, glue, and fasteners. Second Floor includes Engineered Wood "I-Joist" Floor, underlayment grade subfloor, glue, and fasteners.(typically all materials below Main floor joists are by others unless specified)
  • Wall System: Post & Beam walls of 2x6 framing, CDX plywood, House Wrap, and choice of Exterior Cedar Siding. Interior wall framing.
  • Structural Matrix: Comprised of Exposed wood Glu-laminated Beams and Posts set on a stacked grid format.
  • Roof System: 2x12 Rafters to accommodate a R-38 insulation cavity, CDX plywood, 1x6 exterior Whitewood soffiting.
  • Doors & Windows: Vinyl lifetime dbl glazed Windows, Fir exterior entry Door, Solid core oak interior Doors, Door hardware and Cedar Trim.
  • Trim Package: Floor, Roof, Wall Exterior Trim. Interior Window and Door trim.
  • Hardware: Metal framing connectors, exposed metal beam and post connectors, roof vents, screws and stainless trim and siding nails.
  • Documents: Design Interface, construction plans, construction guide, and complete materials usage lists.
  • Technical Support: Renowned customer service and technical support always available.

Not Included in std price: Insulation systems, interior wall coverings (drywall), stairs, roof covering, decks, and exterior sealants. Interior finish items such as cabinets, counter tops, floor coverings, electrical system, plumbing system, and heating system.

Click here to view the Complete Material Specifications for the Post and Beam Building System.

Top

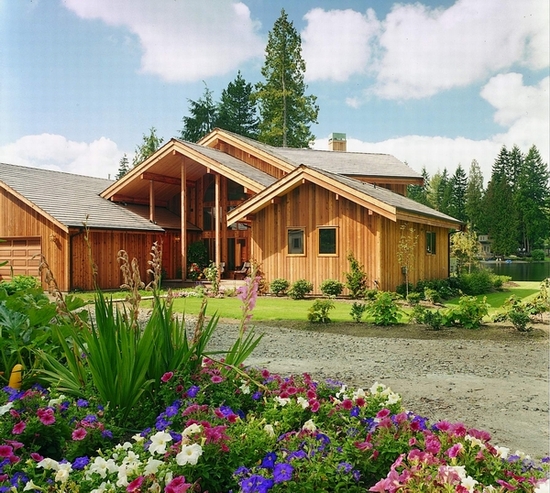

Pan Abode Cedar Home


Untitled Document

Click for full-size version.

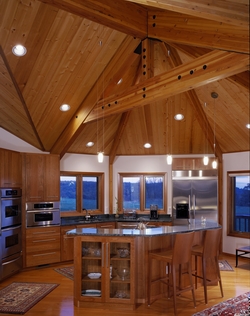

Post and Beam Home Kitchen

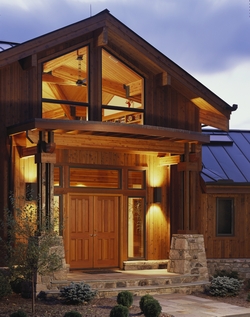

Pan Abode Cedar Homes Post and Beam Home Portico Entry

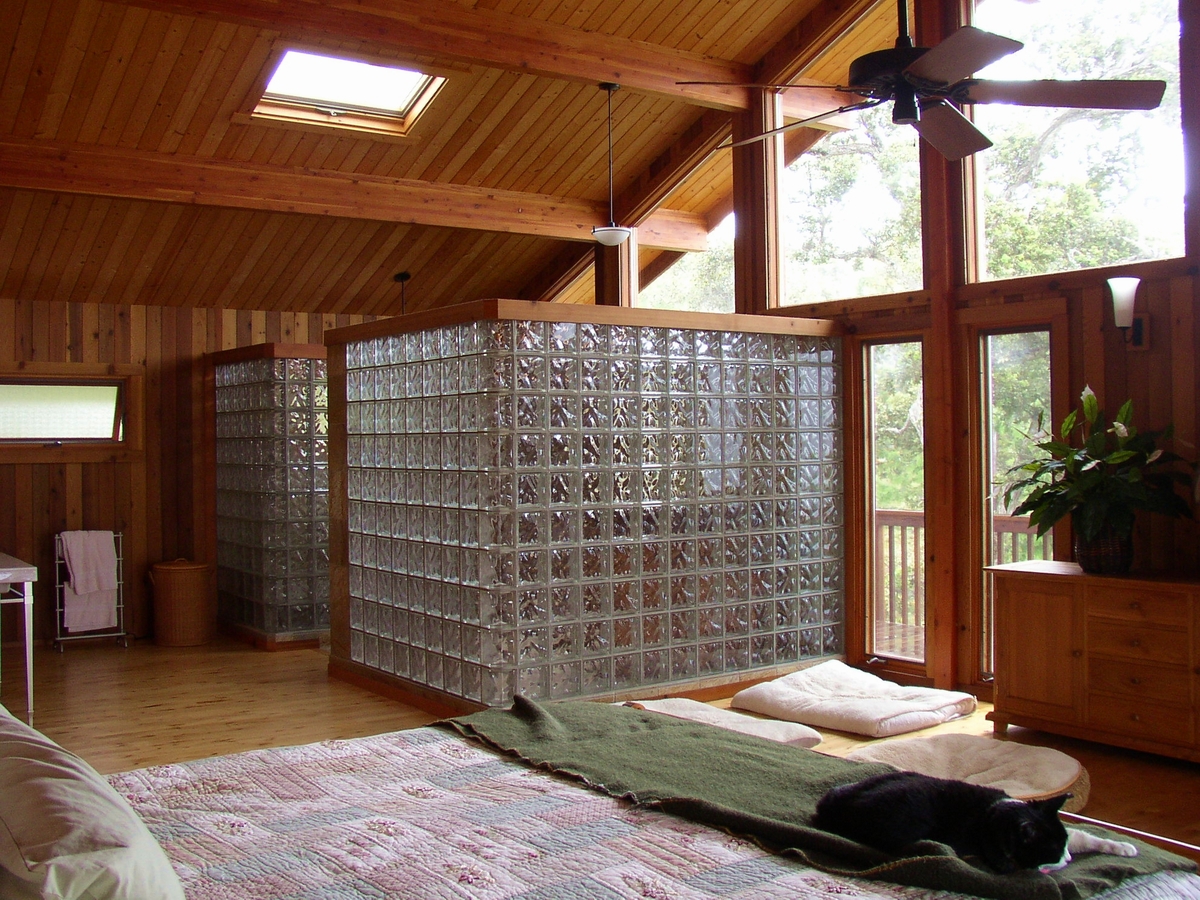

Pan Abode Cedar Homes Post and Beam Home Master Suite

Pan Abode Cedar Homes Post and Beam Home Entry

Pan Abode Cedar Homes Post and Beam Kitchen
